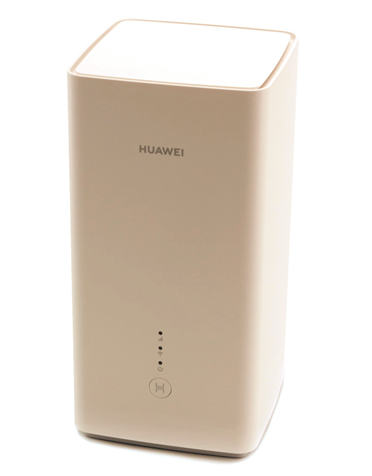

HUAWEI 4G CPE Pro 3 B628-350 Specification

Form Factor

Size: 95*95*190mm

Features

LTE Cat12 DL (4*4+2*2)@2CC+256QAM or 2*2@3CC+256QAM/UL 2CC
FDD-LTE: 600Mbps(DL), 150Mbps(UL)
TDD-LTE: 440Mbps(DL), 30Mbps(UL)
DL 256QAM, UL 64QAM

Band

-LTE: B1/3/5/7/8/20/28/32/38/40/41 (B40 2300~2390,B41 full band)
-UMTS: B1/5/8
-GSM: No GSM
-4*4 MIMO : B1/3/7/38/40/41
-DL CA: DL (4*4+2*2)@2CC+256QAM or 2*2@3CC+256QAM
-UL CA: 2CC
-For details about frequency band combinations, see the attachment

Interface

2xRJ-45 for data, GE (1 LAN/WAN+1 LAN)

1xRJ11 for voice, Voice: CS&VoIP&VoLTE, VoLTE need to customized

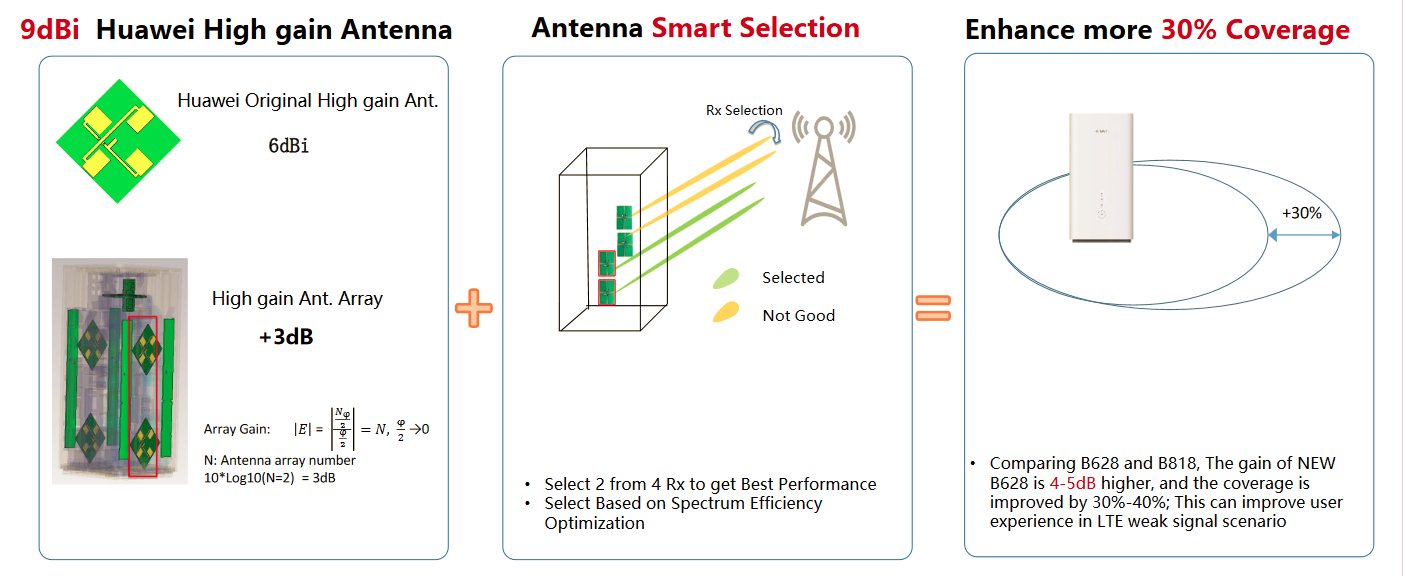

2xTS-9 external antenna interface for LTE

1xSIM card slot (4FF),1x power interface

1*Hi(WPS) KEY/1*Reset KEY/1*Power KEY

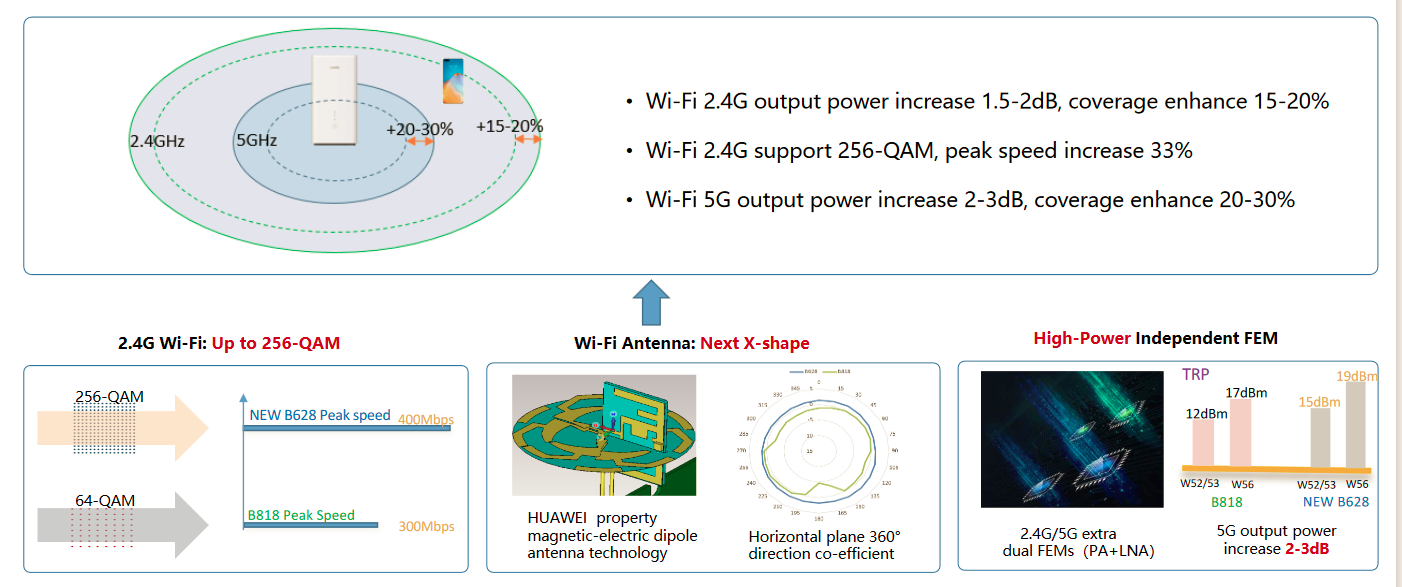

WiFi

802.11 b/g/n 2*2 MIMO 2.4GHz & 802.11a/n/ac 2*2 MIMO 5GHz
2.4GHz &5GHz DBDC

Power

AC/DC:AC: 100 V ~ 240 V; DC: 12 V, 2 A

Chip

Modem:MDM9250-2, WIFI:IPQ4018, AP:IPQ4018



B628-350

B628-350 B818-263

Form
Factor

Size: 95*95*190mm

Size: 103*103*225mm

Features

LTE Cat12 DL (4*4+2*2)@2CC+256QAM or 2*2@3CC+256QAM/UL 2CC



FDD-LTE: 600Mbps(DL), 100Mbps(UL)



TDD-LTE: 440Mbps(DL), 20Mbps(UL)

LTE Cat19 DL 4*4@4CC+256QAM or (4+4+4+2+2)@5CC+256QAM/UL 2CC



Peak data rate 1.6Gbps/150Mbps

Band

-LTE: B1/3/5/7/8/20/28/32/38/40/41



-4*4 MIMO: B1/3/7/38/40/41



-UMTS: B1/8



-GSM: No GSM



DL (4*4+2*2)@2CC+256QAM or 2*2@3CC+256QAM/UL



UL 2CC

-LTE: B1/3/5/7/8/20/28/32/38/40/41/42/43



-4*4 MIMO : B1/3/7/38/40/41/42/43



-UMTS: B1/8



-GSM: No GSM



DL: 4*4@4CC+256QAM or (4+4+4+2+2)@5CC+256QAM



UL 2CC

Interface

2xRJ-45 for data, GE (1 LAN/WAN+1 LAN)



1xRJ11 for voice, Voice: CS&VoIP&VoLTE, VoLTE need to customized



2xTS-9 external antenna interface for LTE



1xSIM card slot (4FF),1x power interface



1*Hi(WPS) KEY/1*Reset KEY/1*Power KEY

2xRJ-45 for data, GE (1 LAN/WAN+1 LAN)



1xRJ11 for voice, Voice: CS&VoIP&VoLTE, VoLTE need to customized



2xTS-9 external antenna interface for LTE



1xSIM card slot (3FF),1x power interface



1*Hi(WPS) KEY/1*Reset KEY/1*Power KEY

WiFi

802.11 b/g/n 2*2 MIMO 2.4GHz & 802.11a/n/ac 2*2 MIMO 5GHz



2.4GHz &5GHz DBDC

802.11 b/g/n 2*2 MIMO 2.4GHz & 802.11a/n/ac 2*2 MIMO 5GHz



2.4GHz &5GHz DBDC

Power

AC/DC:AC: 100 V ~ 240 V; DC: 12 V, 2 A

AC/DC:AC: 100 V ~ 240 V; DC: 12 V, 2 A
